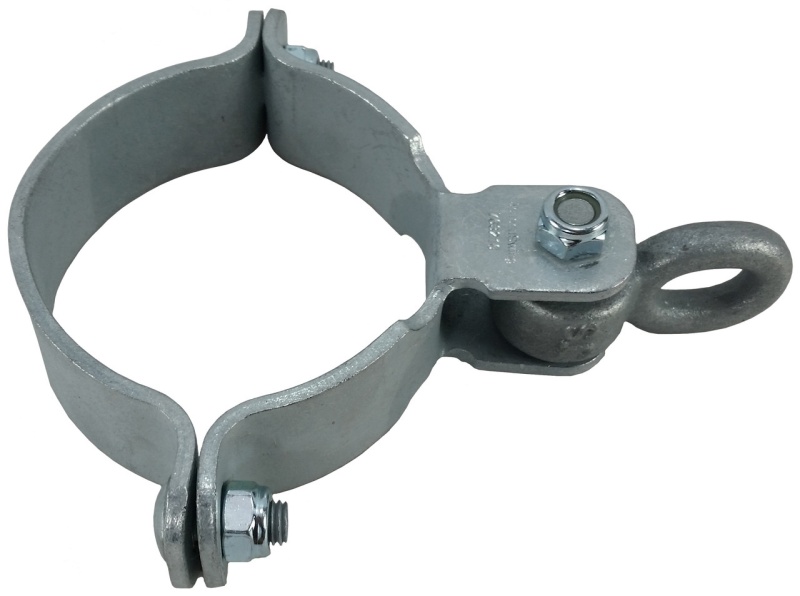

The 5" OD Stamped Steel Swing Hanger is built with stamped steel construction and a closed figure eight pendulum for secure swing attachment.

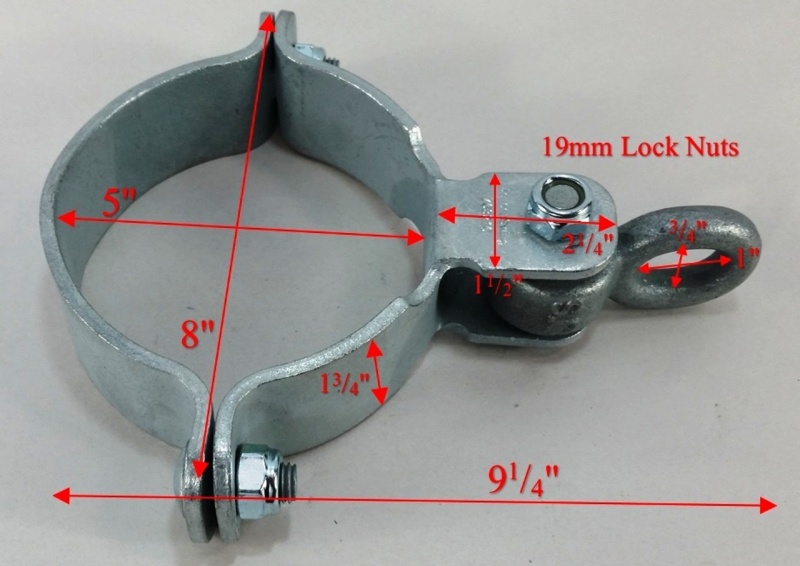

It measures 5" wide with a 15.7" circumference and includes a .51" inside diameter oil light bearing and axle bolt with lock tight nut. The hanger accepts a 12mm bolt, and the lower half includes a sintered bronze bearing to help reduce wear.
The bronze bearing is impregnated with oil, so it does not need to be oiled. The pendulum is 1" wide and designed as a completely closed figure eight so an S-hook or shackle cannot be dislodged from the hanger.
Two halves of the hanger are bolted together with a 12mm carriage bolt and hex lock tight nut. Do not torque more than 25ft-lbs. when installing. Tensile strength is 7500 lbs. Sold as each.
